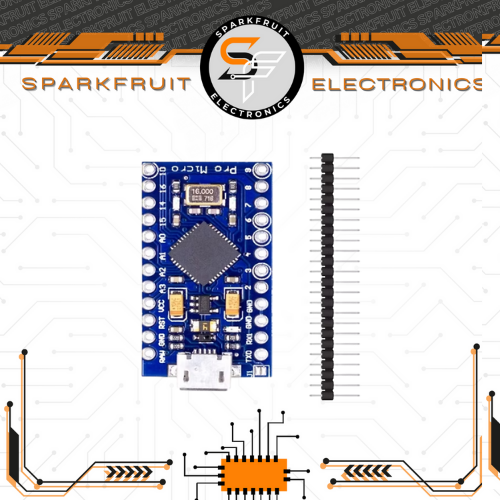

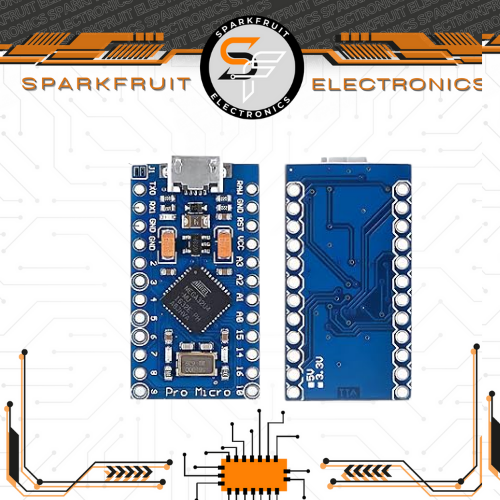

⚡ Arduino Pro Micro – ATmega32U4 5V/16MHz Mini Microcontroller Board
⭐ Product Description
The Arduino Pro Micro is a compact microcontroller board based on the ATmega32U4, featuring 5V operation and a 16 MHz clock. Its small form factor makes it ideal for space-constrained projects, wearable electronics, robotics, and custom USB devices.
Unlike many other Arduino boards, the Pro Micro can emulate a USB keyboard or mouse thanks to its ATmega32U4 built-in USB functionality, making it perfect for HID projects. It provides 12 digital I/O pins (5 PWM outputs), 9 analog inputs, and comes ready to use with the Arduino IDE.
This board is ideal for makers, students, and engineers who need a lightweight, versatile, and programmable microcontroller for both standard and USB-HID projects.
🔧 Specifications
Microcontroller: ATmega32U4
Operating Voltage: 5V
Input Voltage (Recommended): 7–12V
Input Voltage (Limit): 6–12V

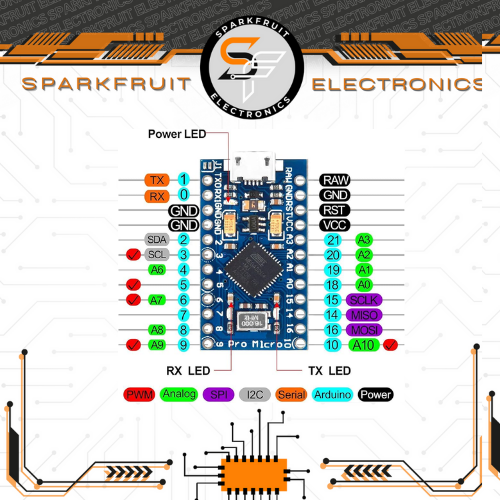

Digital I/O Pins: 12 (5 PWM outputs)
Analog Input Pins: 9
DC Current per I/O Pin: 20 mA
DC Current on 3.3V Pin: 50 mA
Flash Memory: 32 KB (4 KB used by bootloader)
SRAM: 2.5 KB
EEPROM: 1 KB
Clock Speed: 16 MHz
USB Interface: Micro-USB
Dimensions: 33 mm × 18 mm
Weight: ~5 g
