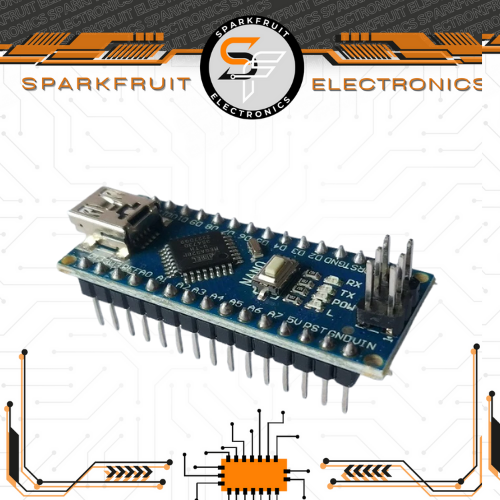

⚡ Arduino Nano V3 – Soldered ATmega328P Microcontroller Board
⭐ Product Description
The Arduino Nano V3 (Soldered Version) is a compact and fully-featured microcontroller board based on the ATmega328P. With its small form factor, it is perfect for space-constrained projects like wearables, robotics, IoT devices, and portable electronics.
This version comes pre-soldered with headers, making it ready for plug-and-play connections with breadboards and sensors. It includes 14 digital I/O pins (6 PWM outputs), 8 analog inputs, USB connectivity, a 16 MHz crystal oscillator, and a reset button. Fully compatible with the Arduino IDE, this Nano allows easy programming and integration in your DIY projects.
🔧 Specifications
Microcontroller: ATmega328P
Operating Voltage: 5V
Input Voltage (Recommended): 7–12V
Input Voltage (Limit): 6–20V
Digital I/O Pins: 14 (6 PWM outputs)
Analog Input Pins: 8
DC Current per I/O Pin: 20 mA
DC Current on 3.3V Pin: 50 mA
Flash Memory: 32 KB (0.5 KB used by bootloader)
SRAM: 2 KB
EEPROM: 1 KB
Clock Speed: 16 MHz
LED_BUILTIN: Pin 13
USB Interface: Mini-USB
Dimensions: 45 mm × 18 mm
Weight: ~7 g
