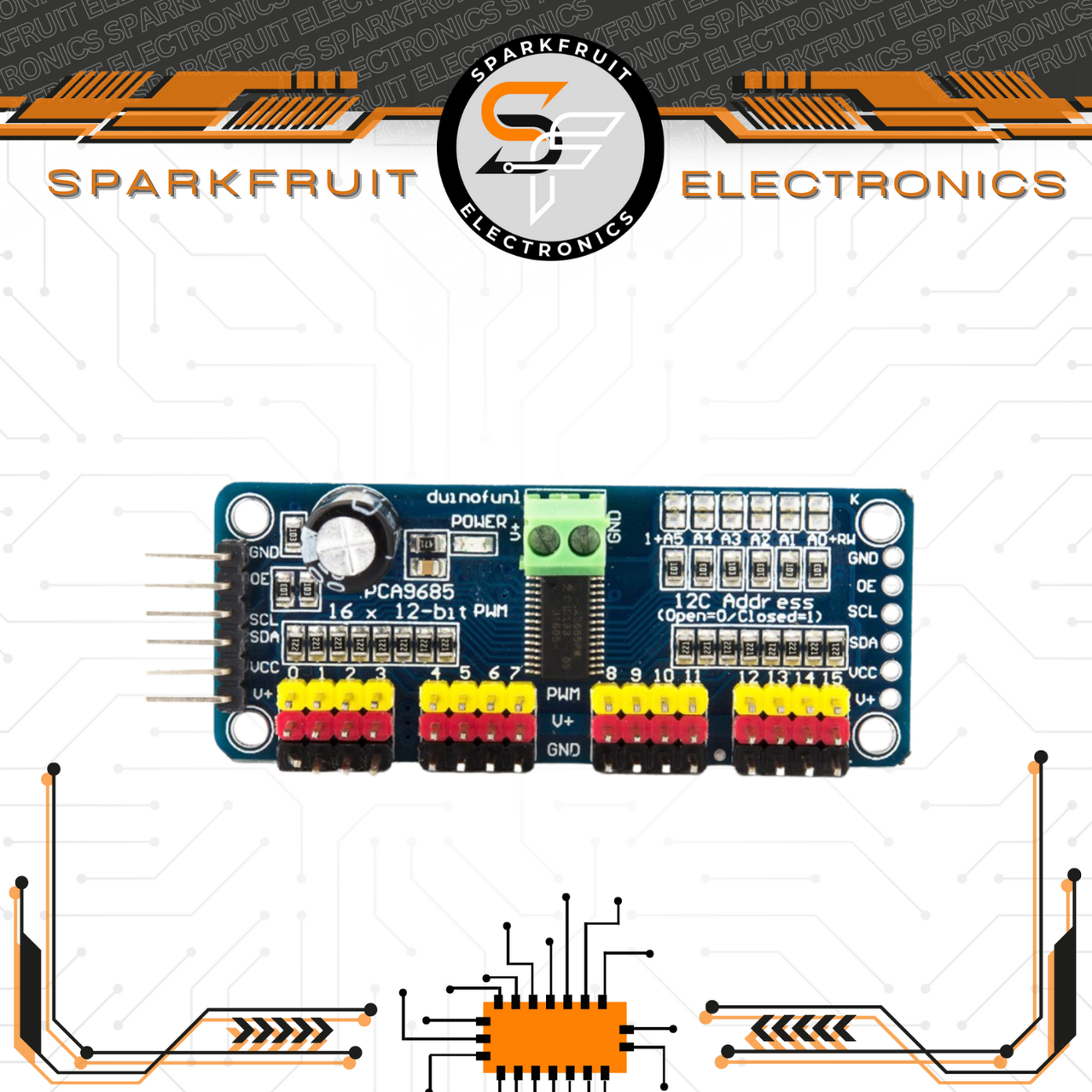

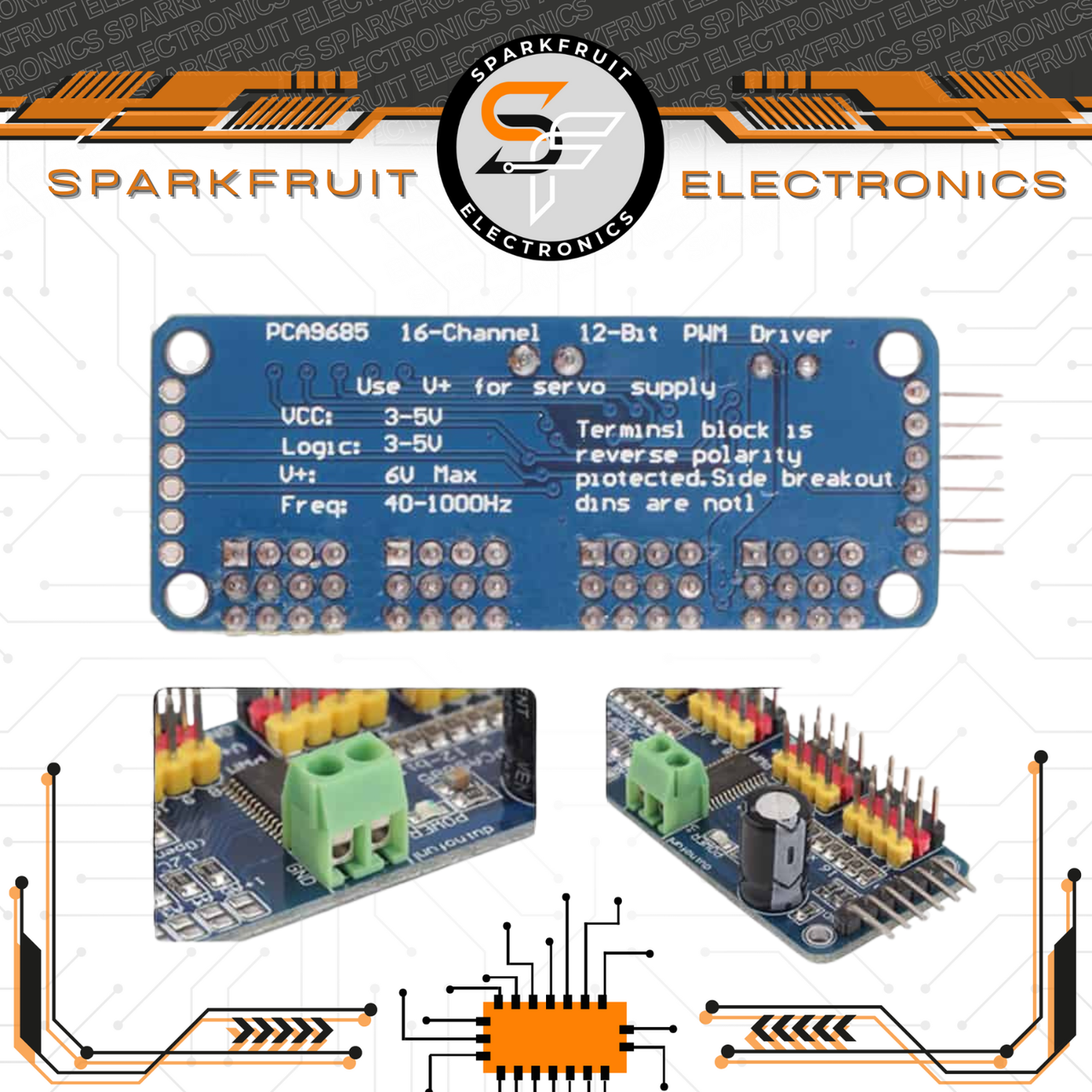

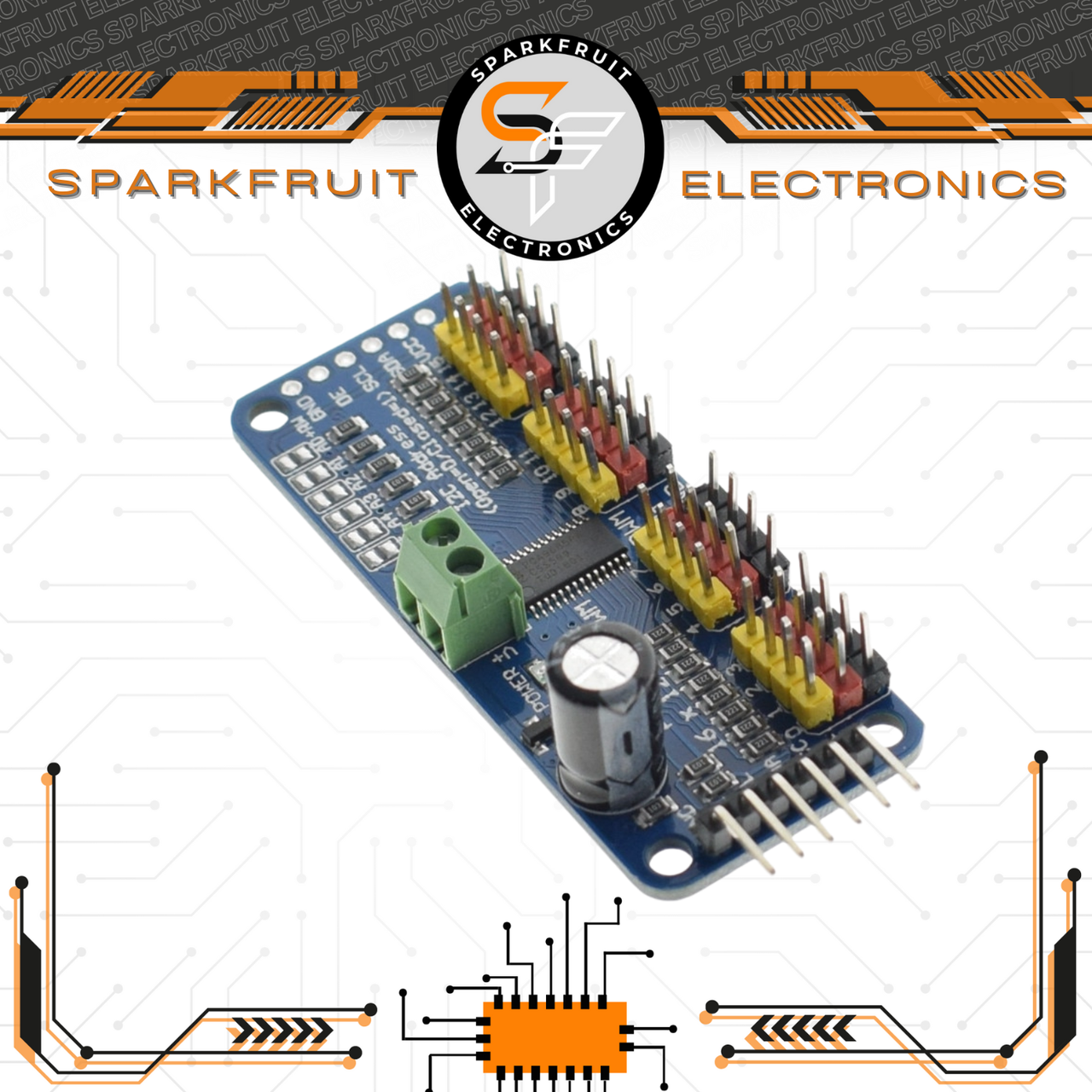

🔧 16-Channel 12-bit PWM Servo Driver – PCA9685 (Soldered Version)
⭐ Product Description
The 16-Channel 12-bit PWM Servo Driver (PCA9685, Soldered) is a versatile module designed to control multiple servo motors, LEDs, or other PWM devices with precision. Ideal for robotics, automation, and LED projects, this module allows you to control up to 16 independent channels with 12-bit resolution (4096 steps per channel).
The soldered version comes pre-assembled, ready to plug into your project without the need for additional soldering. It communicates via I²C interface, which allows multiple modules to be connected together for expanded control. Perfect for makers, hobbyists, and engineers building robots, animatronics, or LED matrices.
🔧 Specifications
Controller IC: PCA9685
Channels: 16 independent PWM outputs
PWM Resolution: 12-bit (4096 steps)
Interface: I²C (SDA/SCL)
Operating Voltage: 3.3V–5V
Servo Supply Voltage: 5V–6V
Communication Address: Configurable via jumpers
Dimensions: 65 mm × 52 mm × 12 mm (approx.)
Weight: ~25 g
Compatibility: Arduino, Raspberry Pi, ESP8266/ESP32, and other microcontrollers
