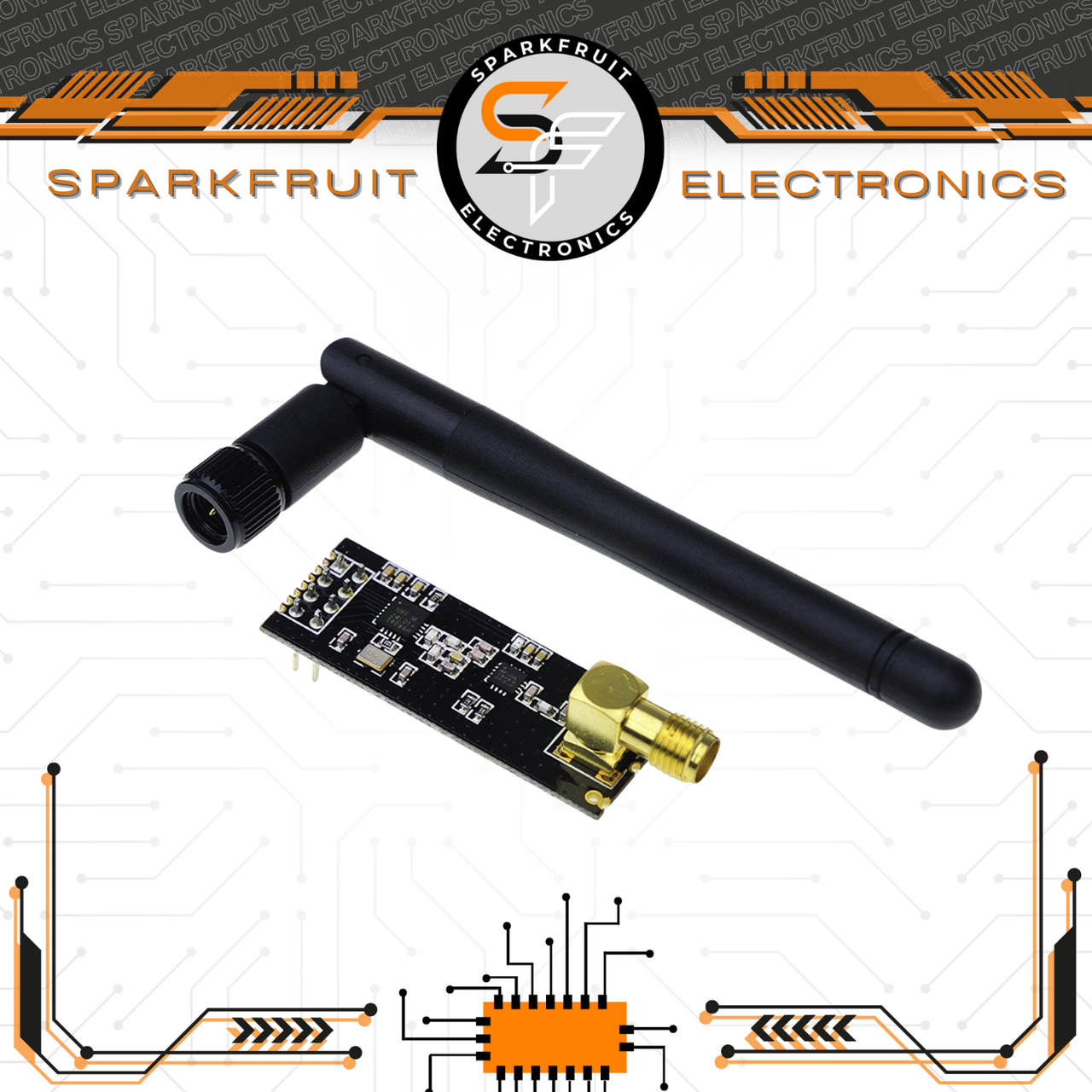

2.4GHz NRF24L01 Wireless Module with PA/LNA & SMA Antenna – 1KM Range
Long-Range Wireless Communication for Your Projects!
This enhanced NRF24L01 module comes with PA (Power Amplifier) and LNA (Low Noise Amplifier) and an external SMA antenna, providing reliable wireless communication up to 1KM. Perfect for Arduino, STM32, Raspberry Pi, and other microcontrollers, it’s ideal for IoT, remote control, and wireless sensor networks.
✨ Key Features:
Frequency: 2.4 GHz ISM band
Long-range communication up to 1 KM (line-of-sight)
Integrated PA + LNA for stronger signal and better sensitivity
External SMA antenna for improved range and flexibility
SPI interface for Arduino, STM32, and other microcontrollers
Supports multiple channels and dynamic payload length
📌 Specifications:
Frequency: 2.4 GHz
Modulation: GFSK
Data Rate: 250 kbps / 1 Mbps / 2 Mbps
Transmit Power: +20 dBm (max with PA)
Sensitivity: -100 dBm (typical)
Interface: SPI
Supply Voltage: 3.3 V
Current Consumption: ~115 mA (transmit)
Range: Up to 1 KM (line-of-sight)
Antenna: External SMA
💡 Applications:
Long-range wireless sensor networks (WSN)
Remote control systems
Arduino and Raspberry Pi wireless projects
IoT devices and home automation
